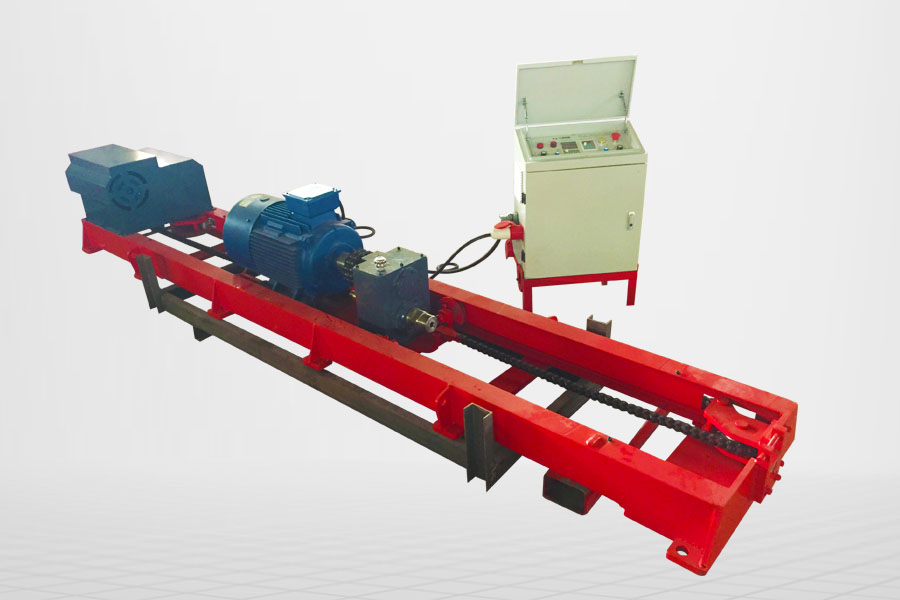

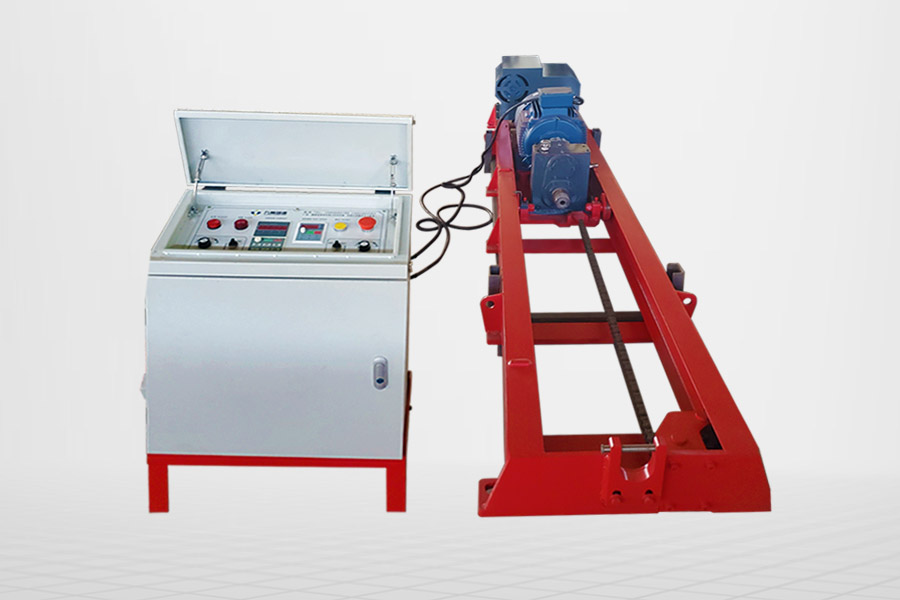

Horizontal Core-boring Machine
Features
Technical Data
| 产品型号 | Model | CYSZD | CYSZS |
| 主机功率 | Mainmotor power | 15KW | 15KW |
|
转动方式 |
Rotation mode | electric auto | electric auto |
| 行走电机功率 | Walking motor power | 0.45KW | 0.45KW |
| 推进方式 | Moving forward mode | converter controlling | converter controlling |
|
钻孔直径 |
Dimeter of drill hole | Φ76MM | Φ76MM |
|
钻杆规格(直径*长度) |
Drilling rod specification(dia.*length) | Φ73*1500MM | Φ73*1500MM |
|
单次进给行程 |
Single feeding distance | 1500MM | 1500MM |
|
钻孔速度 |
Speed of drilling | 2-8M/S | 2-8M/S |
|
最低冷却水供水压力 |
The minimun pressure for cooling water supply | 0.1Mpa | 0.1Mpa |
|
最大钻孔深度 |
Max.depth of drill hole | 130MM | 130MM |
|
整机重量 |
Net weight | 1050KG | 1100KG |
