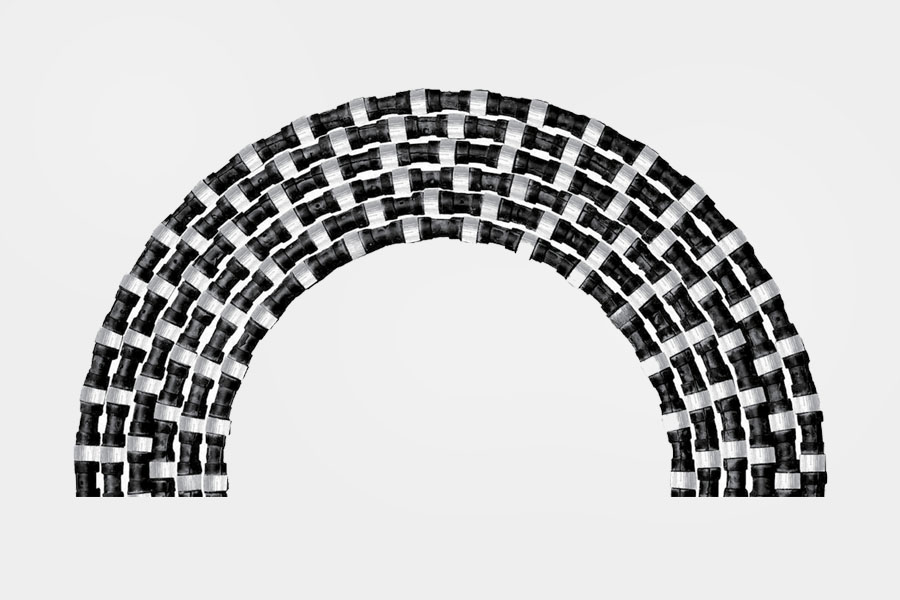

Diamond wire saw for Marble quarry
Features
Diamond wire saw for Marble quarry
Technical Data
| 产品型号 | Model | CYM01 | CYM02 | CYM03 | CYM11 | CYM12 | CYM13 | CYM21 | CYM22 | CYM23 |
| 规格 | Specification | 11.5 | 11/11.5 | 11/11.5 | 11/11.5 | 11/11.5 | 11/11.5 | 11/11.5 | 11/11.5 | 11/11.5 |
|
固定方式 |
Fixed by | Spring | Spring | Spring | Rubber | Rubber | Rubber | Rubber+Spring | Rubber+Spring | Rubber+Spring |
| 串珠数/米 | Beads No./m | 28-33 | 28-33 | 28-33 | 37/40 | 37/40 | 37/40 | 37/40 | 37/40 | 37/40 |
| 切割对象 | Cutting material | Soft Marble | Medium Hard Marble | Ultrahard Marble | Soft Marble | Medium Hard Marble | Ultrahard Marble | Soft Marble | Medium Hard Marble | Ultrahard Marble |
|
效率㎡/h |
Cutting speed | 10-25 | 8-16 | 5-10 | 10-20 | 8-16 | 5-10 | 10-18 | 8-15 | 5-8 |
|
寿命㎡/m |
Wire life | 20-30 | 12-20 | 8-15 | 30-45 | 15-30 | 12-20 | 30-50 | 15-35 | 15-25 |
|
线速度m/s |
Line speed | 30-38 | 30-35 | 28-35 | 35-40 | 33-40 | 28-35 | 35-40 | 33-40 | 28-35 |
