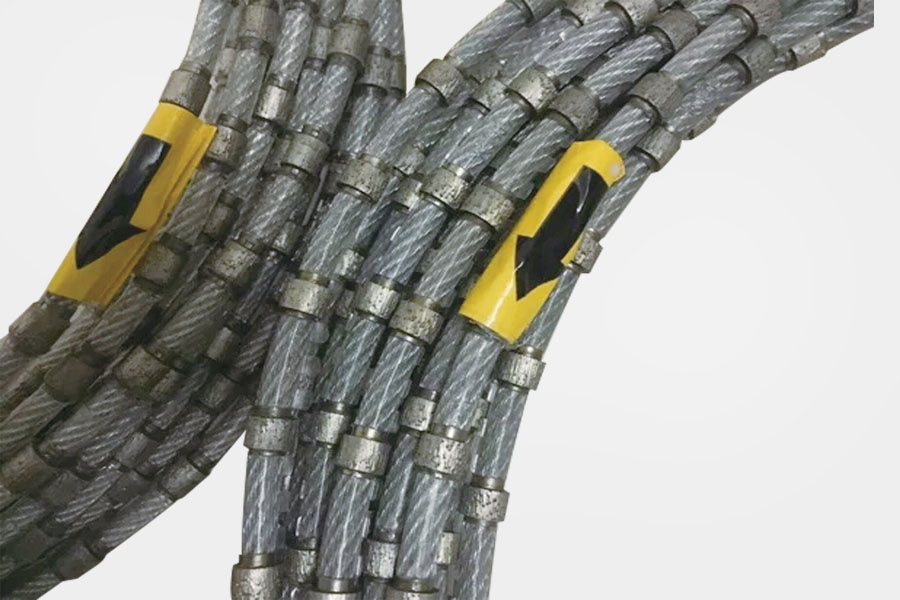

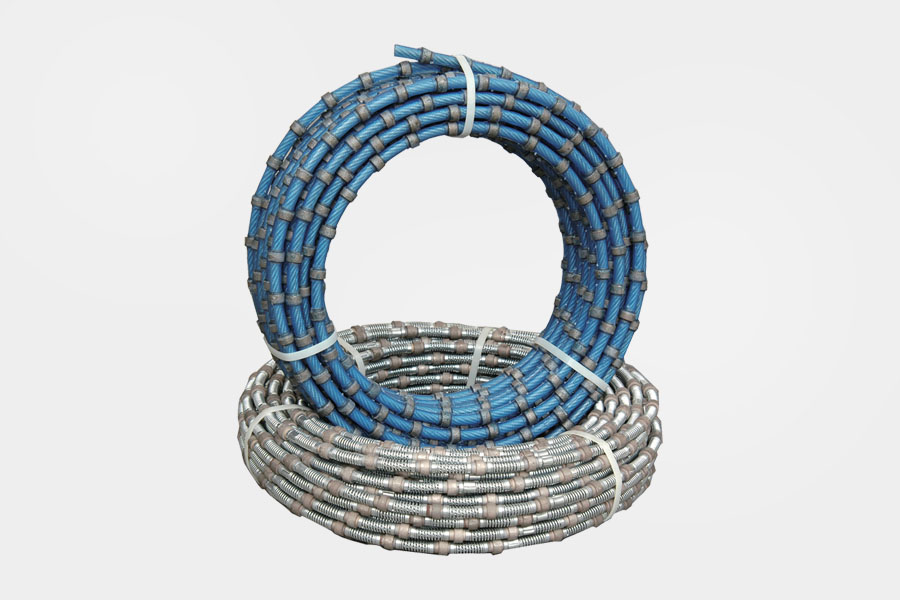

Didamond wire saw for Granite /Marble profiling
Features
Didamond wire saw for Granite /Marble profiling
Technical Data
| 产品型号 | Model | CYYG8 | CYYG8.5 | CYYG9 | CYYG10.5 | CYYJ10.5 |
| 规格 | Specification | 8 | 8.5 | 9 | 10.5 | 10.5 |
|
固定方式 |
Fixed by | Plastic | Plastic | Plastic | Plastic | Plastic |
| 串珠数/米 | Beads No./m | 33/37 | 33/37 | 33/37 | 33/37 | 33/37 |
| 切割对象 | Cutting material | Granite | Granite | Granite | Granite | Granite |
|
效率㎡/h |
Cutting speed | 150-200 | 150-200 | 120-180 | 80-150 | 80-150 |
|
寿命㎡/m |
Wire life | 8-20 | 8-20 | 8-20 | 10-25 | 10-25 |
|
线速度m/s |
Line speed | 25-30 | 25-30 | 25-30 | 25-30 | 25-30 |
| 产品型号 | Model | CYYM8 | CYYM8.5 | CYYM9 | CYYM10.5 | CYYJ10.5 |
| 规格 | Specification | 8 | 8.5 | 9 | 10.5 | 10.5 |
|
固定方式 |
Fixed by | Plastic | Plastic | Plastic | Plastic | Rubber |
| 串珠数/米 | Beads No./m | 33/37 | 33/37 | 33/37 | 33/37 | 33/37 |
| 切割对象 | Cutting material | Marble | Marble | Marble | Marble | Marble |
|
效率㎡/h |
Cutting speed | 150-200 | 150-200 | 120-180 | 80-150 | 80-150 |
|
寿命㎡/m |
Wire life | 15-30 | 15-30 | 15-30 | 15-40 | 15-40 |
|
线速度m/s |
Line speed | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 |
