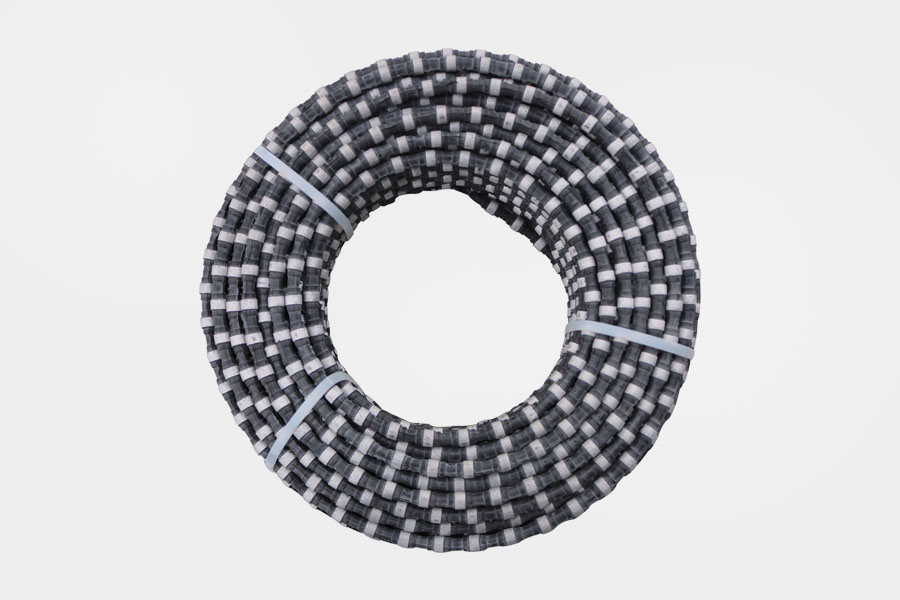

    Diamond wire saw for reinforced concrete
    Features
    Technical Data
    产品型号 Model CYH21 CYH22 CYH23 CYH24 CYH25
    规格 Specification 11.5  11.5  11.5  11.5 11.5
    固定方式
    Fixed by Rubber-Spring Rubber-Spring Rubber-Spring  Rubber-Spring Rubber-Spring
    串珠数/米 Beads No./m 37/40 37/40  37/40 37/40 37/40
    切割对象 Cutting material

    Brick concrete structure

    fine reinforced concrete thick reinforced concrete High density reinforced concrete Steel Structure
    效率㎡/h
    Cutting speed 3-8 2-6 1.5-3 1-2.5 0.5-1.5
    寿命㎡/m
    Wire life 3-8 2.5-5 2-3 1.5-2.5 0.8-1.5
    线速度m/s
    Line speed 20-30 20-28 18-25 18-25 15-20
