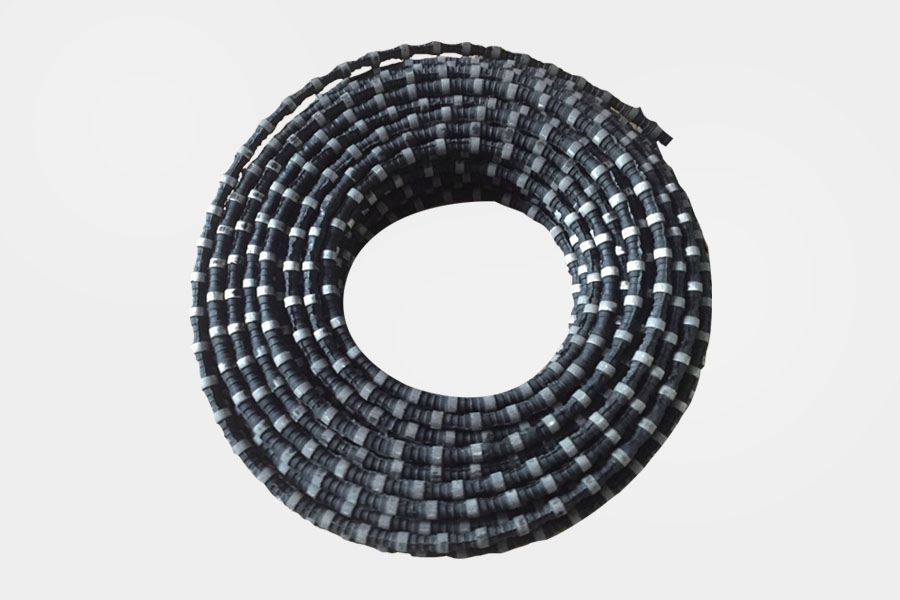

Diamond wire saw for granite quarry
Features
Other specifications are available according to customer's requirements.
Technical Data
| 产品型号 | Model | CYG11 | CYG12 | CYG13 | CYG21 | CYG22 | CYG23 |
| 规格 | Specification | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 |
|
固定方式 |
Fixed by | 橡胶 | 橡胶 | 橡胶 | 橡胶+弹簧 | 橡胶+弹簧 | 橡胶+弹簧 |
| 串珠数/米 | Beads No./m | 37/40 | 37/40 | 37/40 | 37/40 | 37/40 | 37/40 |
| 切割对象 | Cutting material | 软质花岗岩 | 中硬花岗岩 | 特硬花岗岩 | 软质花岗岩 | 中硬花岗岩 | 特硬花岗岩 |
|
效率㎡/h |
Cutting speed | 15-25 | 10-20 | 8-15 | 15-20 | 10-18 | 8-12 |
|
寿命㎡/m |
Wire life | 15-20 | 10-15 | 8-12 | 10-25 | 10-20 | 8-15 |
|
线速度m/s |
Line speed | 28-40 | 28-36 | 28-33 | 28-40 | 28-36 | 28-33 |
