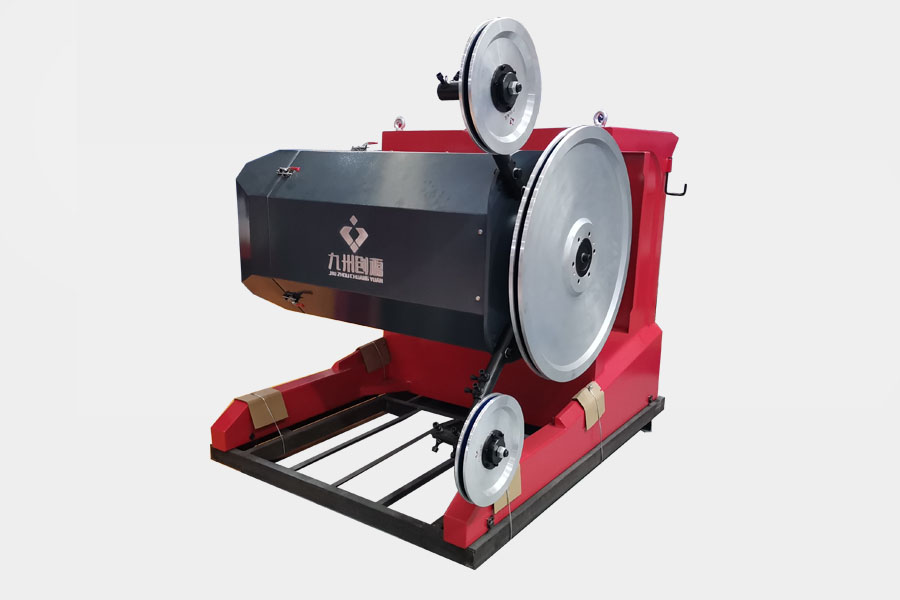

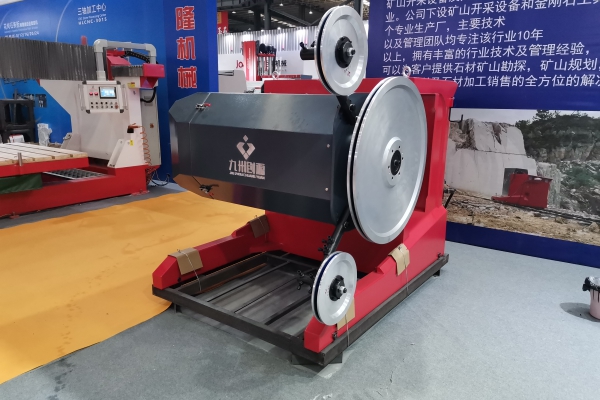

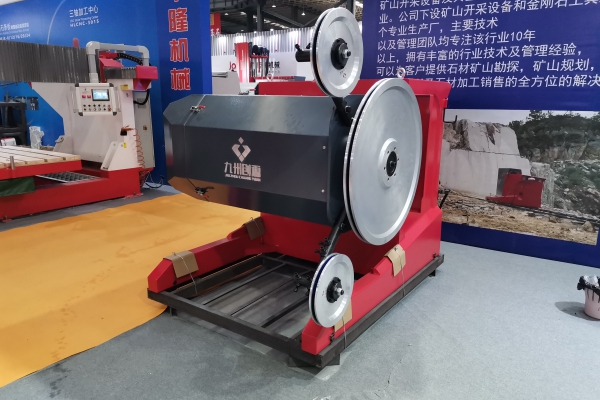

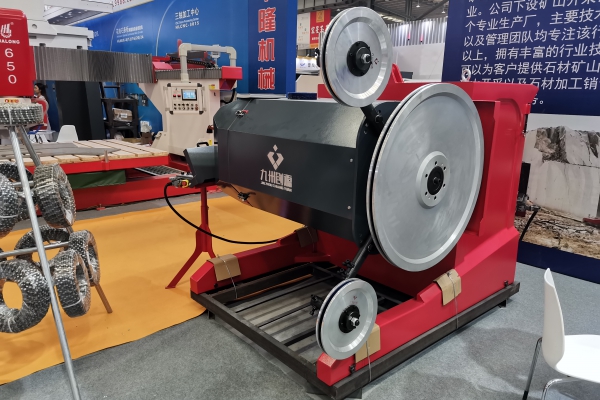

Major functions of the electrical driving diamond wire saw machine:
1. Controlled with two inverters , automatic constant tensioning system keeps the wire always in optimal working condition and extend the life span of diamond wire.
2. Angle adjustment range from 0-360 degree(electric auto), further installed Photoelectric proximity switch for limit protection , allows to horizontal, vertical and any direction cutting.

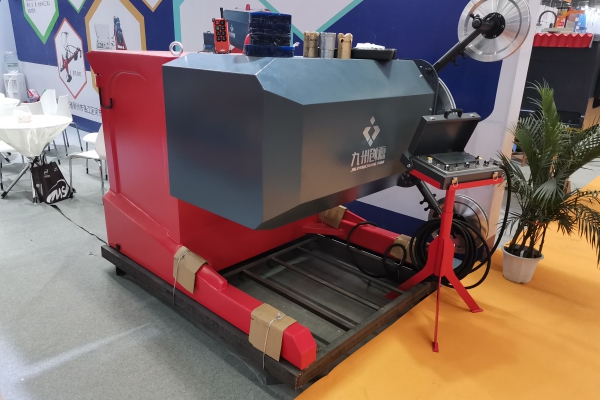

3.Separate control panel with feature of easy and safe manipulation for operator.
4.Control pannel Shows working information : main motor setting voltage ,current voltage ,speed ,etc , operation adjustion becomes more concise.
5. Horizontal extention system of flywheel shaft position range from 0-600mm(electric auto).
6. With the function of manual and automic operation control switch, under automic operation , one person can operate several machines concurrently.
7. With 4-core control cable, decreasing the failure rate , connection and failure identifying become easier.
8. Safety stop in case of unexpected wire breakage or other faults.
|
Wire saw machine for marble quarrying |
|
|
|
|
|
| 产品型号 | Model | CY-M-37-6P | CY-M-45-6P | CY-M-55-6P | CY-M-75-8P |
| 主电机功率 | Mainmotor power | 37-6P | 45-6P | 55-6P | 75-8P |
|
主飞轮直径 |
Flywheel diameter | Φ800mm | Φ800mm | Φ800mm | Φ1000mm |
| 绳锯线速度 | Wire saw speed | 0-40m/s | 0-40m/s | 0-40m/s | 0-40m/s |
| 绳锯最大长度 | Max.wire saw length | 10-70M | 10-90M | 10-120M | 10-150M |
|
行走电机功率 |
Walking motor power | 0.75KW | 0.75KW | 0.75KW | 0.75KW |
|
主机行走速度 |
Walking speed of machine | 0-1200 | 0-1200 | 0-1200 | 0-1200 |
|
电动反转角度 |
Rotation angle(electric) | 360 | 360 | 360 | 360 |
|
电动横移距离 |
Lateral moving distance | 60 | 60 | 60 | 60 |
|
最大切割间距 |
Max.lateral cutting distance | 1800 | 1800 | 1800 | 1900 |
|
导轨长度 |
Rail length | 2m*3 | 2m*3 | 2m*4 | 2m*5 |
|
使用许可温度 |
Allowed working temperature | -15 | -15 | -15 | -15 |
|
外型尺寸(长*宽*高) |
Dimension(L*W*H) | 2000*1400*1300 | 2000*1450*1300 | 2000*1450*1300 | 2000*1500*1400 |
|
整机重量 |
Net weight | 2650 | 2750 | 2900 | 3500 |
Wire saw machine for granite quarrying
| 产品型号 | Model | CY-G-37-8P | CY-G-45-8P | CY-G-55-8P | CY-G-75-8P |
| 主电机功率 | Mainmotor power | 37-8P | 45-8P | 55-8P | 75-8P |
|
主飞轮直径 |
Flywheel diameter | Φ800mm | Φ800mm | Φ800mm | Φ1000mm |
| 绳锯线速度 | Wire saw speed | 0-30m/s | 0-30m/s | 0-30m/s | 0-30m/s |
| 绳锯最大长度 | Max.wire saw length | 10-70M | 10-90M | 10-120M | 10-150M |
|
行走电机功率 |
Walking motor power | 0.75KW | 0.75KW | 0.75KW | 0.75KW |
|
主机行走速度 |
Walking speed of machine | 0-1200 | 0-1200 | 0-1200 | 0-1200 |
|
电动反转角度 |
Rotation angle(electric) | 360 | 360 | 360 | 360 |
|
电动横移距离 |
Lateral moving distance | 60 | 60 | 60 | 60 |
|
最大切割间距 |
Max.lateral cutting distance | 1800 | 1800 | 1800 | 1900 |
|
导轨长度 |
Rail length | 2m*3 | 2m*3 | 2m*4 | 2m*5 |
|
使用许可温度 |
Allowed working temperature | -15 | -15 | -15 | -15 |
|
外型尺寸(长*宽*高) |
Dimension(L*W*H) | 2000*1400*1300 | 2000*1450*1300 | 2000*1450*1300 | 2000*1500*1400 |
|
整机重量 |
Net weight | 2700 | 2800 | 3000 | 3500 |
